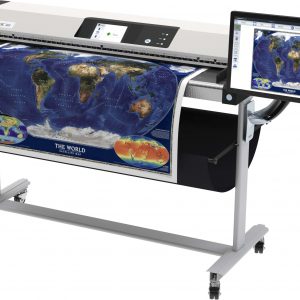

Image Access WideTEK 60 ART
WideTEK 60ART
Fine art scanner for gentle, contact-free digitization of paintings, drawings, and other delicate artworks, capturing every detail with precision.
Description
Contactless digitization
Original artwork is scanned without any physical contact, as the CCD camera system captures the image while the artwork is gently moved below it. This process eliminates the risk of damage, making it possible to digitize even framed pieces or freshly painted works without compromising their condition.
Professional art reproduction
The WideTEK ART integrates effortlessly with large-format printers from HP, Canon, and EPSON, delivering a complete solution for professional art reproduction. With native printer drivers installed directly on the scanner, it ensures exceptional color accuracy for stunning, true-to-original results.
3D surface scanning
Beyond capturing fine art textures, our WideTEK ART stands out in 3D surface scanning for a variety of uses. From inspecting coins, Braille prints, and textiles to analyzing SMD components on circuit boards, this scanner delivers precise imaging for detailed surface inspection and quality control.
Two versions, upgradable from 48 to 60″
The scanner is available in two versions: the 60-inch version and a more cost-effective 48-inch version for users with smaller format needs up to 48 x 80 inches (1270 x 2032mm). For maximum flexibility, the WideTEK 48ART can be seamlessly upgraded to the full 60-inch width at any time with an upgrade key, ensuring your scanner adapts to your evolving requirements.
Rapid data transfer
The 1 Gbit Fast Ethernet connection with TCP/IP-based Scan2Net® interface provides ultra-fast data transfer speeds. Scanned images move across your network nearly instantaneously, ensuring efficient workflow.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available. Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant.Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Specifications
Document
Maximum Document Size
950 mm (37.4 inch) width. Information about the maximum scan length in the technical specification.
Maximum Scan Width
max. 915 mm (36 inch)
Document Thickness
max. 3.0 mm (0.1 inch)
Autoformat Size Recognition
yes
DIN Format
DIN A5 – DIN A0
ANSI Format
Legal, US E
User Defined Format
yes
Output
Scanner Resolution
1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Optical Resolution
1200 x 600 dpi
Pixel Dimension
42 x 42 µm
Paper Path
Face up, Front entry, Front or rear exit
Scan Speed Color
200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 15.4 m/min (10.1 inch/s)
600 dpi – 7.6 m/min (5 inch/s)
1200 dpi – 3.8 m/min (2.5 inch/s)
Scan Speed BW
Same as 24 bit Color
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data and more
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI **** guidelines, ISO 19264-1 Level A
Accuracy
Scan direction
± 0.08% across 36 inch scanning width
Transport direction
± 0.08%
Technical Specifications
Computer
64 bit Linux, Intel® Core™ Gen 9 processor,
250GB SSD, 16GB RAM for very long scans
Touchscreen
7 inch multi-touch display
Monitor
22 inch touchscreen with arm (included in the bundle)
USB Port
1 x USB 3.0 port
Interface
1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
3x Tri-color CCD camera, 67,500 pixels, encapsulated and dust-proof
Light Source
Two linear lamps with white LEDs, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 hours typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
228 x 1095 x 507 mm (9 x 43 x 20 inches)
Weight Scanner
45 kg (99 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 4.7W / P(Ready) 60W / P(Active) 120W 61% below
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
Ambient Conditions
Monitor Options
Stand Options
Technical changes, errors and omissions excepted. All information subject to change.
Install/Training
Docuvan will provide a number of key environmental and IT Setup requirements prior to delivery of your scanner. This will enable you to place the scanner in a suitable location and connect it to your network once it arrives.
It also means we will be as efficient as possible in getting you up to speed with your new scanner without typical IT delays,
once we come on site or remote connect to it for the setup, configuration and training.
Because the Bookeye has a built-in Linux PC and is managed from a simple interface on a touch screen, it very quick to get up to speed with.
There is also a web interface that can be used for setup and configuration of the scanning profiles from a PC on the same network, if you want to do it that way, using a Poweruser login.
We provide On-Site Training for multiple staff, if required. This can be broken into Administrator and User Training, if required.
Alternatively, we offer remote training over the internet, using TeamViewer or Microsoft Teams, connected to your scanner, so we can configure the scanner to your needs as part of the training.
This can be more cost effective where travel and accommodation costs are prohibitive. (Or we are subject to travel restriction such as during covid)
This would require the IT component to be pre-configured so it can be accessed remotely.
Rental
We offer a rental service for certain Bookeye Models.
Please contact us to enquire about this service: [email protected]
